| Place of Origin: | China |
| Brand Name: | GIENI |
| Certification: | CE |
| Model Number: | GMJ-801-Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 45 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1 |
| Powder Supply: | 220V,50Hz | Label Speed: | 200 Bottles/min |
|---|---|---|---|
| Labeling Precision: | Bottle's Axle Position Error±0.5mm | Material Size: | Φ2-9cm |
| Operating Temperature: | -20~50°C | Automatic Grade: | Automatic |
| Type: | Labeling Machine | Application: | Food,Beverage,Medical,Chemical,Commodity |
| High Light: | Vertical Cylinder automatic bottle labeler,200BPM automatic bottle labeler,200BPM bottle labeling equipment |
||

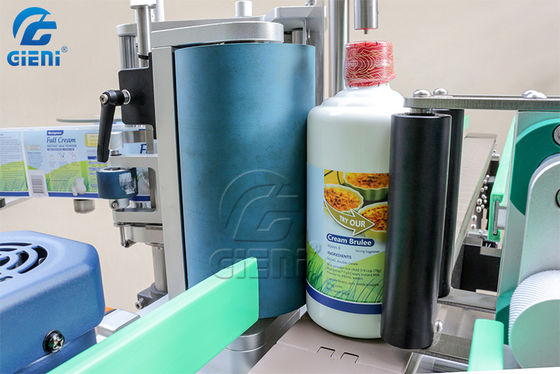

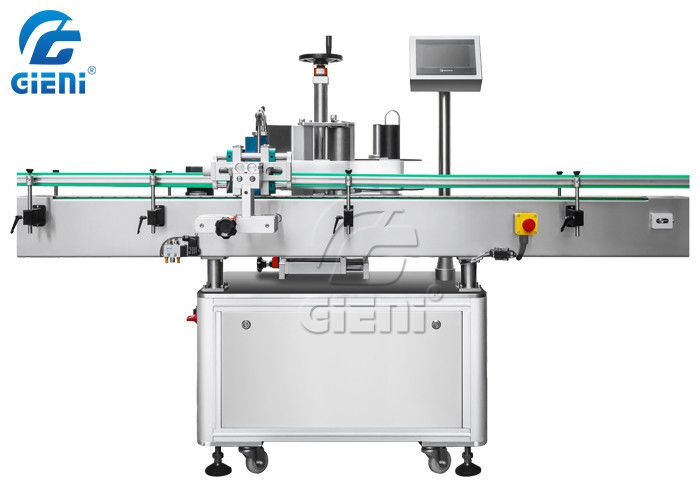

Automatic Vertical Cylinder Round Bottle Positioning Labeling Machine
Application of bottle positioning labeling machine
It is suitable for any industrial circular container products with full circle label, such as petrochemical industry, medicine, health care products, food, chemical industry, etc. Choose an inkjet printer, the inkjet printer can print any date and other information, such as production date, batch number, and expiration date. One machine can automatically mark items of different diameters and heights.
Features of bottle positionning labeling machine
1. Realize high-speed labeling.
2. One or two pieces can be labeled according to the setting.
3. Three-side positioning of the container can realize high-precision labeling without being affected by the bottom. 4. Adopt fixed label, no air bubbles when sticking plastic label.
5. The entire electric control system is controlled by PLC and adopts Chinese rigid operation, which is not very convenient and clear at a glance.
6. The overall stainless steel rounded cabinet is easy to clean and beautiful.
| GMJ-801-Q Round Bottle Positioning labelling Machine | |||
| Powder supply | 220V±10% 50Hz | Material size | Φ20-90mm |
| Label Speed | 200 bottles /min | Operating environment Relative temperature | -20~50°C |
| Labeling precision | Bottle's Axle Position Error±0.5mm；front and rear height deviation(first one and last one ) ±1.0mm | Operating Relative humidity | 15-95% |
