600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials

600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials

  • 600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials
  • 600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials
  • 600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials
  • 600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials
  • 600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials
  • 600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials
600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials
Product Details:
Place of Origin: Shanghai, China
Brand Name: GIENICOS
Certification: CE
Model Number: JLB-802
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: plywood case, solid export package, 1 pallet
Delivery Time: 30
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1
Contact Now
Detailed Product Description
Machine Name: Rotary Table Vertical Round Bottle Labeling Machine For Ampoules Vials Machine Measurement: 2208mm*1420mm*1948mm
Labeling Speeds: 600bottles/min Labeling Accurate: ±0.5mm
Bottle Size: Dia. 10-30mm Application: Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Food,etc
Electricity: 220VAC±10% 50Hz 4.1Kw Weight: 600kgs
Service Provided: Online Support, Video Call Technical Support, Free Repair Parts, Onsite Installation, Training, Maintenance
High Light:

600kgs automatic round bottle labeling machine

,

4.1Kw Automatic Round Bottle Labeling Machine

,

4.1Kw ampoule labeling machine


Rotary Table Vertical Round Bottle Labeling Machine for Ampoules Vials(JLB-802), is designed for high speed and high precision on labeling small round bottles and containers. The output is 600pcs per minute.





Applications:

  •  Applied to high precision labeling on penicillin vials, oral liquid, ampoules, Schering bottles, and other small pharmaceutical bottles, cosmetic bottles that can't stand very stably.



Key Features:

  • Vertical bottle movement and screw feeding are suitable for small round bottles which are not standing steady;
  • Rotary tables with tri-points locations theory to ensure high precision and high-speed labeling;

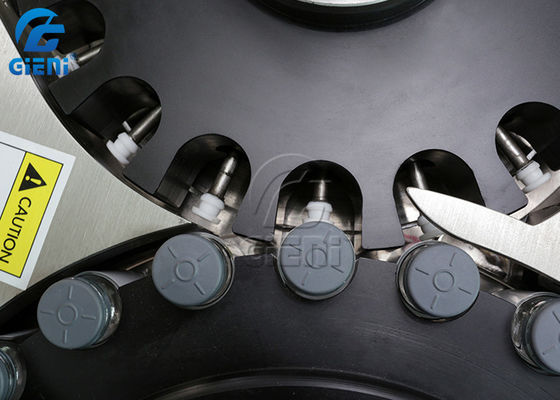

  • Star Wheel position detecting device, which ensures accurate inspection and rejection at high-speed operation;
  • Visual inspections device offers multi detecting functions, like labeling detection, miss label detection, label content inspection, etc., and  also placement accuracy;
  • Adopts advanced and Brand HMI touch screen, make operation simple and efficient;
  • equipped with brand PLC control system, easy to operation, multiple functions, with online help functions;
  • With safety enclosure and safety door, which ensure the safety of operators;
  • whole machine structure is made by stainless steel 304 and anodizing aluminum alloy, non-rust;



Fitting options

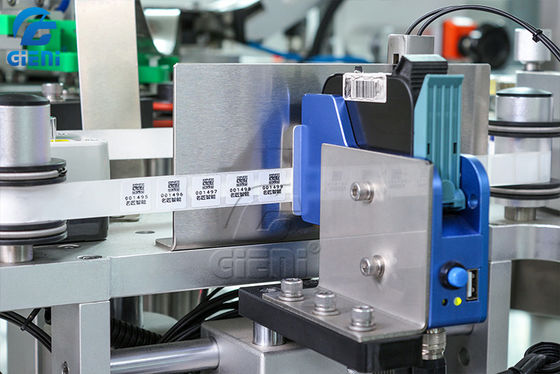

  • Options for printings: Hot stamping coder,  thermal transfer printer, inkjet printer; running status and alarm information can be reflected in the system in real time;



Technical Parameter
Model# JLB-802
Speed

600bottles/min

Material Size Diameter 10mm-30mm
Dimension ( Length × Width × Height ) 2208mm×1420mm×1948mm
Labeling Precision ±0.5mm
Label Material  Transparent or opaque sticker labels



Main components:

Model Specification Brand
JLB-802 Label Feeding Servo Motor/Driver YASKAWA
Electric Element Schneider
PLC SIEMENS
Frequency Converter  HOLIP(Danish Brand)
Touch Screen Weinview
Sensor SICK
Steel frame

Stainless Steel 304



600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials 0



600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials 1



600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials 2



600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials 3



600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials 4





600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials 5600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials 6

600kgs 4.1Kw Rotary Table Automatic Round Bottle Labeling Machine For Ampoules Vials 7
