Horizontal Automatic Shrink Sleeve Labeling Machine Small Products Packaging Machine

Horizontal Automatic Shrink Sleeve Labeling Machine Small Products Packaging Machine

  • Horizontal Automatic Shrink Sleeve Labeling Machine Small Products Packaging Machine
  • Horizontal Automatic Shrink Sleeve Labeling Machine Small Products Packaging Machine
  • Horizontal Automatic Shrink Sleeve Labeling Machine Small Products Packaging Machine
  • Horizontal Automatic Shrink Sleeve Labeling Machine Small Products Packaging Machine
  • Horizontal Automatic Shrink Sleeve Labeling Machine Small Products Packaging Machine
Horizontal Automatic Shrink Sleeve Labeling Machine Small Products Packaging Machine
Product Details:
Place of Origin: China
Brand Name: Gienicos
Certification: CE
Model Number: JTB-360T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 45
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1
Contact Now
Detailed Product Description
Application: Mascara,Lip Gloss,essential Oil,candy And Other Slim Bottles Power Supply: AC 380V,3 Phase,50/60HZ,15KW
Film Material: PE, PVC, OPS, PET Film Thickness: 0.035-0.045mm
Film Roll Core Diameter: 100-150MM Film Heating Temp: Up To Max 200 ℃
Labeling Speed: 100pcs/min Film Cut Precision: ±0.25MM
High Light:

Automatic Shrink Sleeve Labeling Machine

,

Horizontal Shrink Sleeve Labeling Machine

,

380V Shrink Sleeve Applicator

1 . Description



This horizontal labeling machine solves many technical problems in vertical labeling machines. Can be used for labeling slender, light weight objects.This shrink sleeve labeling machine has a wide range of applications and can be used in many fields such as cosmetics, beauty makeup, candy, and medical supplies. One machine can be applied to products in multiple fields by adjusting the fixture. This shinking sleeve labeling machine is cost-effective and is a good choice for OEMs of cosmetics and medical supplies.



Horizontal Automatic Shrink Sleeve Labeling Machine Small Products Packaging Machine 0



2 . Technical parameter



Power Supply AC 380V,3 phase,50/60HZ,15KW
Target Products Slim and long objects such as Lipstick, mascara, lipgloss, pencil box, oil bottle, etc
Range of the product size

10*10mm—25*25mm

25*25mm—45*45mm (Can be customized for other size)

Film Material PE, PVC, OPS, PET
Film Thickness 0.035-0.045mm
Film Roll Core Diameter 100-150MM
Film Heating Temp. Up to Max 200 ℃
Labeling Speed 100pcs/min
Film Cut Precision ±0.25MM
Sensor Keyence (Japan)
Safety Cover Yes, with air spring and brake.



3 .  Why choose this machine?

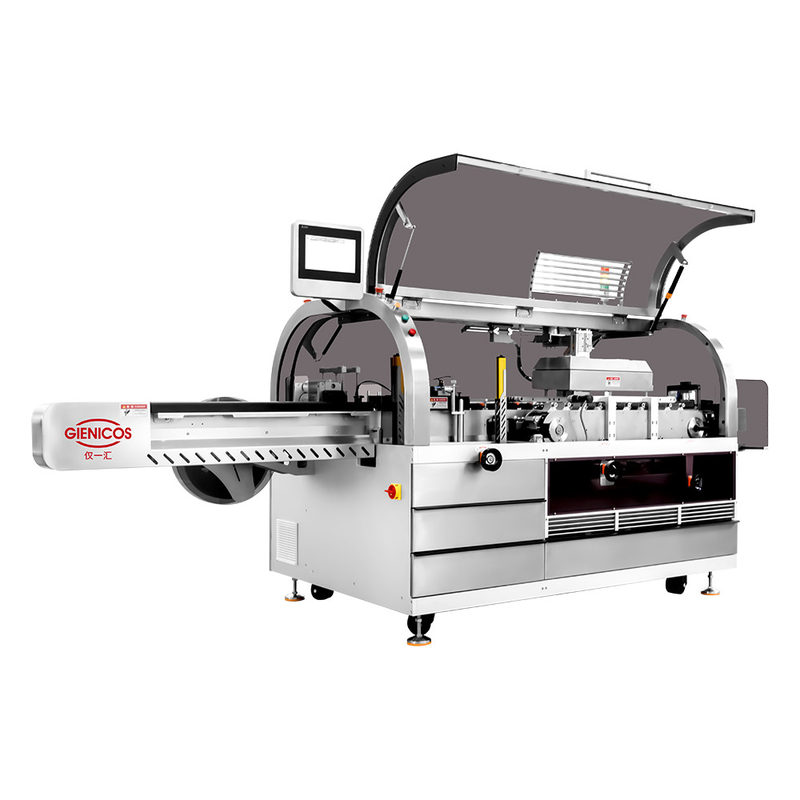

Horizontal type design gives the sleeve shrinking able to work for small size bottles/boxes compared with vertical type. Compact design with all function on one machine save the customers room space and transportation cost. It has wing style safety cover mounted with air spring for easy open and close, meanwhile it also has a brake on the air spring for protect the cover from being closed suddenly.

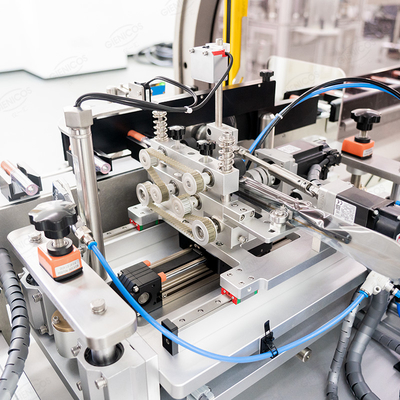

Servo control the film inserting station which is a tracking design, it increases the production speed and the accuracy of inserting rate is highly improved. Film is automatically feed from a roller film loading system.

This shrink sleeve labelling machine adopts full Servo control system for the film cutting results in high precision at ±0.25mm. The film cutting system adopts single piece round cutting knife ensures flat cutting surface and non burrs.

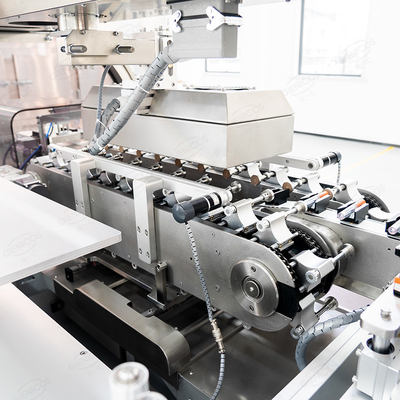

The shrinking tunnel is inner mounted to the machine after film wrapping. Special heating-while-rotating conveyor assist the heating is evenly to be done at bottles’ surface so that there is no air bubble happens. Meanwhile the heating oven is able to be auto lifted up when machine stops and it turns back to prevent conveyor from being burned.

This sleeve labeling machine also gives a shaping function at the end of shrinking tunnel, it is very smart design for those square bottles or boxes which can flat process the two ends.



Horizontal Automatic Shrink Sleeve Labeling Machine Small Products Packaging Machine 1

Horizontal Automatic Shrink Sleeve Labeling Machine Small Products Packaging Machine 2
