90PPM Tube Labeling Machine

China Shanghai Gieni Industry Co.,Ltd certification
China Shanghai Gieni Industry Co.,Ltd certification
I'm Online Chat Now

90PPM Tube Labeling Machine

90PPM Tube Labeling Machine
90PPM Tube Labeling Machine 90PPM Tube Labeling Machine 90PPM Tube Labeling Machine 90PPM Tube Labeling Machine 90PPM Tube Labeling Machine

Large Image :  90PPM Tube Labeling Machine

Product Details:
Place of Origin: Shanghai, China
Brand Name: GIENI
Certification: CE
Model Number: JLB-815
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: plywood case, solid export package, 1 pallet
Delivery Time: 30
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1
Detailed Product Description
Features: For Labeling Slim And Cylindrical Objects Machine Name: Automatic Cosmetic Bottom Adhesive Labeler Mascara Tube Labeling Machine
Size: 2000 X 1072 X 1800mm ( L*W*H ) Output: 60-90pcs/min, According To Tube Size
Labeling Accuracy: ±1.0mm Suitable Container Size: Dia.15-30mm
Suitable Container Length: 50mm - 110mm Driven Type: Servo Motor
Our Service: Online Support, Video Call Technical Support, Free Repair Parts, Onsite Installation, Training, Maintenance Applications: Used For Lipstick, Mascara, Lip Gloss, Lip Pencil Labeling
High Light:

90PPM Tube Labeling Machine


30mm Mascara Labeling Machine


90PPM Mascara Labeling Machine

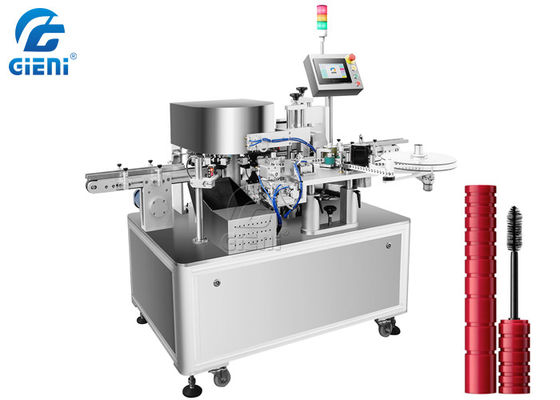

Automatic Cosmetic Bottom Adhesive Labeler Mascara Tube Labeling Machine (JLB-815), is with automatic rotary design with die labeling method, which applied to end faces/ bottom side of different tubes, like lipstick, lip gloss, mascara, lip pencil, etc.


  •  It is an ideal choice for labeling mascara, lip gloss, lipstick containers, and so on.

Key Features:

  • Labeling feeder is driven by Yaskawa motor, feeder material adopts Switzerland technology, never deform, wonderful friction and non-slip, which ensure the high precision labeling feeding;
  • High precision servo motor, the max. labeling speed is up to 90pcs per minute;
  • No container no labeling, no labeling auto-calibration, and auto-detection;

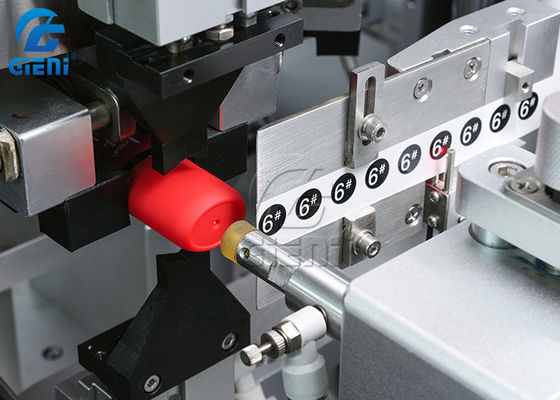

  • Adopt servo rotary disk positioning system to feed the containers, to suit for exceptionally small label size, normally used for the end of the lipstick casing, we use a specially designed suction arm to pick up and apply the label on to the substrate, to ensure accurate placement and reliable operation;
  • adopt sensor detection, PLC control, to ensure the labeling high precision and high speed;
  • various inspection devices, for detecting label missing, wrong label, repeated label, wrong position, miss code, wrong code, etc. to sure the quality of the output. The defective products are rejected into a rejection bin;
  • Various coding devices for synchronized online coding: hot stamping, inkjet, thermal inkjet, thermal transfer, to suit to customer’s real request
  • HMI touch screen: Easy to operate, providing comprehensive help menu and diagnosis support.
  • Suitable for different sizes and shapes by changing silicone clamping jaw, which saves production capacity and production cost.


Technical Parameter
Model# JLB-815


Container Diameter 15-30mm
Container Length 50-100mm
Dimension ( Length × Width × Height ) 2000mm×1072mm×1800 mm
Labeling Precision ±1.0mm
Min. Label Length  9mm


Main components:

Model Specification Brand
JLB-815 Label Feeding Servo Motor/Driver YASKAWA
Electric Element Schneider
VFD Danmark
Station Rotary Disk/Label Conveyor/ Label Feed Servo Driven/Yaskawa/Japan
Touch Screen Weinview
Steel frame

Stainless Steel 304


90PPM Tube Labeling Machine 0

90PPM Tube Labeling Machine 1


90PPM Tube Labeling Machine 2


90PPM Tube Labeling Machine 3


90PPM Tube Labeling Machine 4


90PPM Tube Labeling Machine 5
90PPM Tube Labeling Machine 690PPM Tube Labeling Machine 7
90PPM Tube Labeling Machine 8
